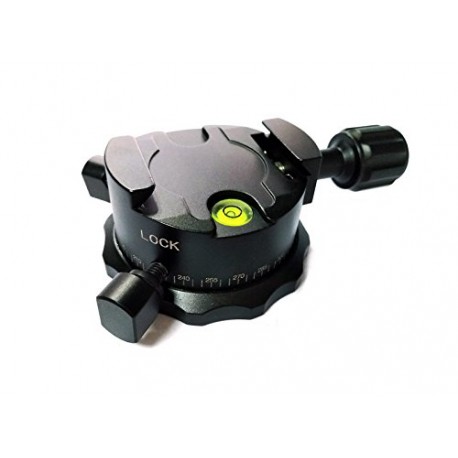

Indexing Panning Clamp Fittest DH-50

Specifications:
    Diameter Upper base: 52mm
    Diameter Bottom base: 62mm
    Height: 32mm
    Weight: 250g
    Thread Mount: UNC3 / 8 "-16

The DH-52 is a precision panoramic base with superior standard coupling and built-in spirit level. It is a device manufactured under military standards of CNC high precision machining and compatible with the fast standard system of Arca-swiss type coupling. The turn occurs with extraordinary smoothness.

The scale is laser engraved and includes centering marks that allow you to precisely orient any angle of horizontal rotation in each shot of the camera. The scale in the shoe allows the precise adjustment of the nodal center with each focal change, making it a very suitable element for an efficient panoramic quality photograph.


Features:

1. Made with precision machined aerospace duralumin with high precision

2. High quality surface treatment with high resistance anodizing techniques.

3. Very small size with high contrast bubble

4. Improved structural design with high strength blocking.

5. Completely metallic. The controls are made entirely of metal, with excellent finishes ensuring both smooth control and reliability and durability. No plastic or rubber elements are used.

6. Scale screenprinted with laser in range 0 ° -360 °, with increments of 30 °
